3-Piece Flanged End Full Port Ball Valve

V-3F Type

Size: 1/2″ ∼ 4″

3-PIECE FLANGED END BALL VALVE ACC. TO ANSI-150LBS, DIN PN 16, PN 40

CARBON STEEL S-45C (Din 1.1191)

STAINLESS STEEL AISI 316 (Din 1.4408)

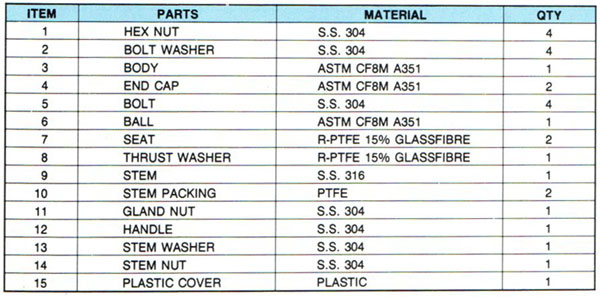

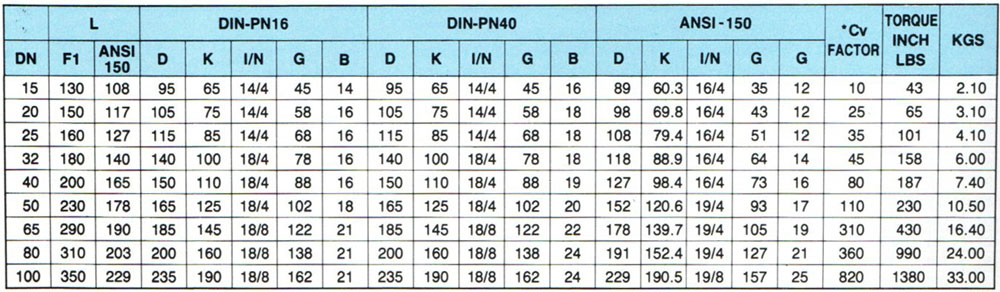

PARTS AND MATERIALSPECIFICATIONS
